Supplier of Corrugated Steel Roofing Sheets
Discover the Versatility of Corrugated Galvanised Steel Sheets: Durable, Easy to Install, and Eco-Friendly.
Tinman Steels Ltd offer 3 different cover widths of metal corrugated roofing and cladding (sometimes known as wriggly tin).
Each cover width is calculated to cover the spans given on each profile with an additional overlap for the next sheet. We offer our steel in a wide range of colours that you can view below:
Corrugated Metal Roofing Sheet Profiles
8/3 Corrugated profile which has a cover width of 610mm
10/3 Corrugated profile which has a cover width of 762mm
13.5/3 Corrugated profile which has a cover width of 991mm
Why Choose Tinman Steels
1987
in Tamworth
Product Knowledge
with Great Reviews
The Benefits of Corrugated Metal Roofing Sheets

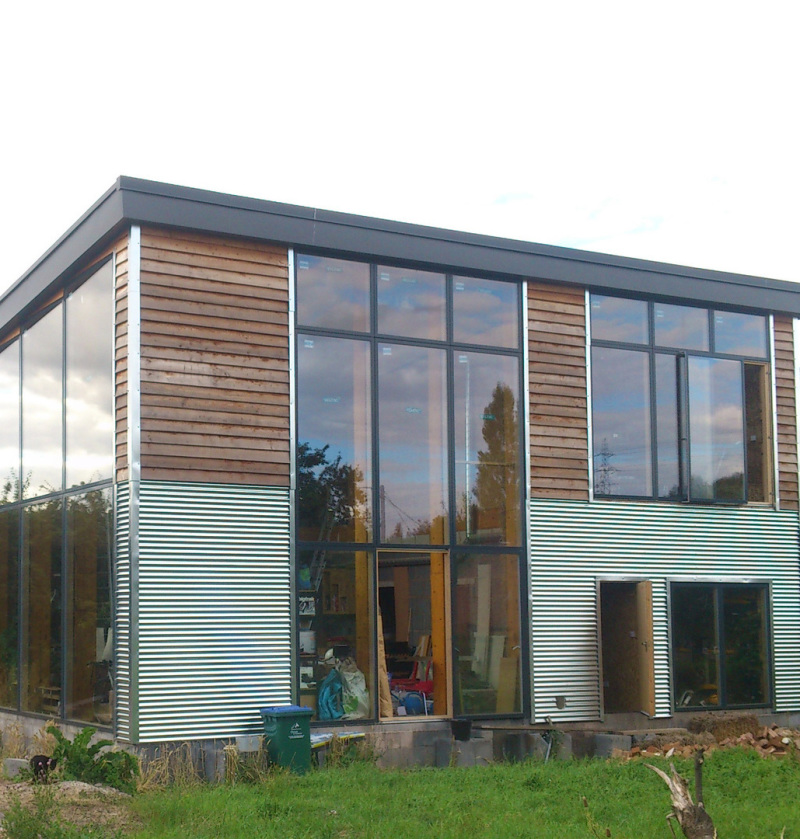

Corrugated galvanised steel sheets are versatile and robust, making them the ideal material for many applications and uses including as pictured.
- Easy to Install
- Strong and long lasting
- Available in range of profile and colours
- Sustainable
Speak to the team at Tinman Steels today, your local high quality roofing supplier based in Tamworth, Staffordshire.
TMS 8/3 Specification
Tinman Steels Ltd range of 8/3 Corrugated galvanised steel sheets.
Profile: TMS 8/3
Profile Height:
19mm
Pitch: 76.2mm
Cover Width:
610mm
Gauge: 0.5mm
Profile Options:
Roof and Wall profile
Length:
Made to order from 1.00mtr to 6.500mtr
Finish Options:
Galvanised
8/3 is an ideal size for those tight enclosed areas where full width 13.5/3 cladding is not a viable option.
TMS 10/3 Specification
Tinman Steels Ltd range of 10/3 Corrugated galvanised steel sheets, please view the details below
10/3 Galvanised Sheets
Profile: TMS 10/3
Profile Height:
19mm
Pitch: 76.2mm
Cover Width:
762mm
Gauge: 0.5mm and 0.7mm
Profile Options:
Roof and Wall profile
Length:
Made to order from 1.00mtr to 6.500mtr
Finish options:
Galvanised, Plastisol in Juniper Green BS 12B29 & Black BS 00E53
TMS 13.5/3 Specification
Tinman Steels Ltd offer a range of 13.5/3 Galvanised
Corrugated
sheets, view the range in more detail:
Profile: TMS 13.5/3
Profile Height:
19mm
Pitch: 76.2mm
Cover Width:
991mm
Gauge: 0.5mm and 0.7mm
Profile Options:
Roof and Wall profile
Length:
Made to order from 1.00mtr to 6.500mtr
Finish Options:
Galvanised, Polyester paint coated and Plastisol PVC coated
Corrugated Cladding Finish Options
We offer our Corrugated Cladding in a wide range of finish options, view the colour chat below to see our range
